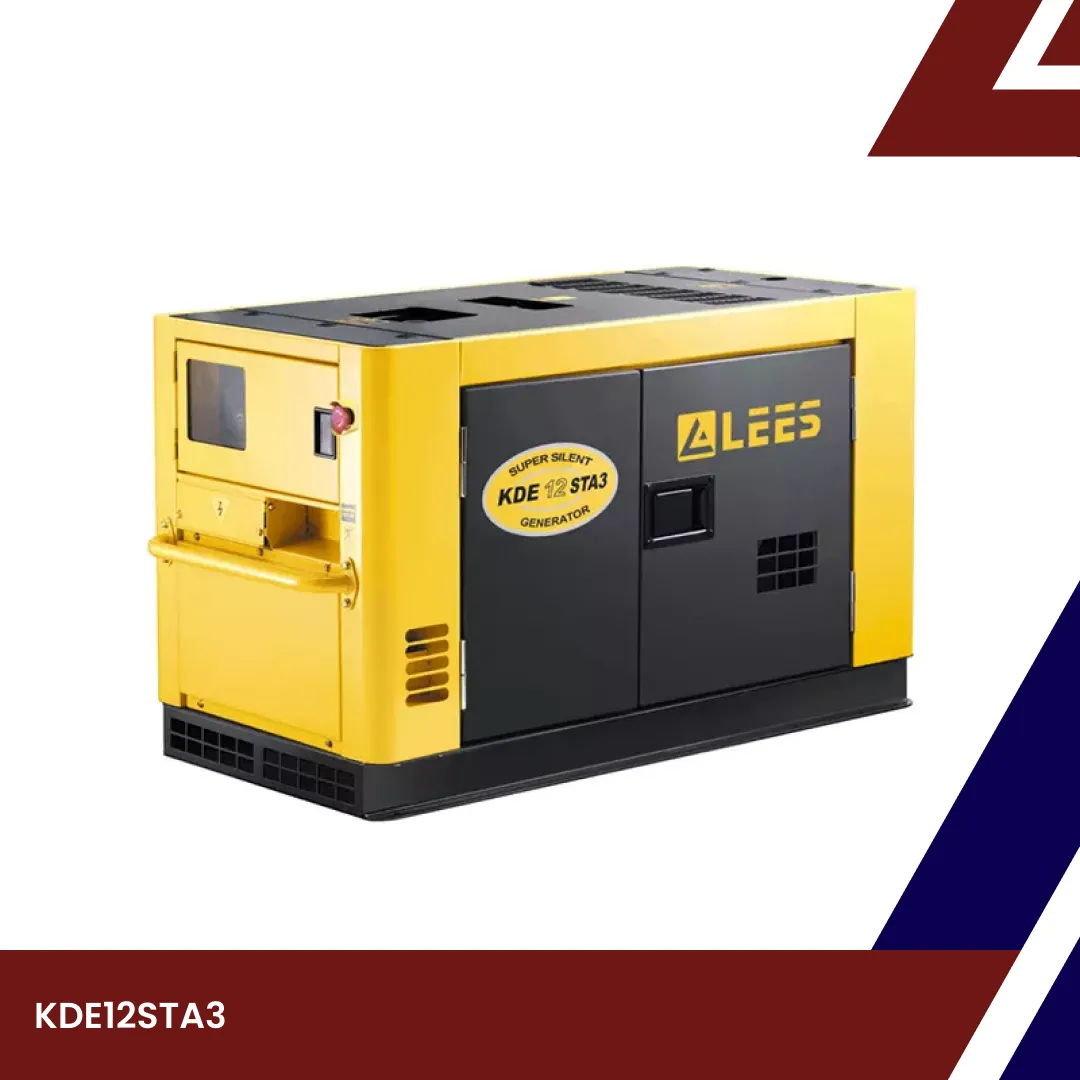

KDE12STA3

· Low running noise · Digital control panel · Advanced alternator winding · Low oil alarm system · Application of new AVR · Strong power

Add to wishlist
Share
Categories,

    Product Description





    Features



    Quieter and more powerful

    A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.Strong power with an easy start air cooled engine.



    Digital Control panel

    All operating functions of the generator sets are on the panel. A digital readout displays operating parameters in real time such as output voltage and amperage. Circuit breakers protect the generator from

    overloads.



    Running quickly

    A convenient electric starter gets the KDE series generators up and running quickly.



    Delivering the power you need

    Powerful, flexible, versatile, reliable, durable; LEES Generators have it covered on every level.



    Easily portable

    An open frame configuration means it’s easy to handle and store when not in use.



    Wide application

    Various models are available to meet all customer requirements.



    Parameter

    KDE12STA3

    Generator

    Rated frequency

    Hz

    50

    60

    Rated output

    KVA

    11

    11.5

    Max. output

    kVA

    12

    12.5

    Rated Voltage

    V

    230/230

    240/416

    Rated current

    A

    14.5

    16

    Rated rotation speed

    rpm

    3000

    3600

    Phase NO.

    Three

    Power factor

    0.8(lag)

    Insulation Grade

    B

    Pole number

    2

    Excitation mode

    Self-excitation and constant voltage(AVR）

    Panel Type

    Digital Panel

    Voltagge

    V

    230/400

    240/416

    Receptacle

    Two single-phase receptacles

    DC12V output

    Connection pole output

    Overall dimension:     L×W×H

    mm

    1200*650*890

    Dry weight

    Kg

    310

    Working assorting weight

    Kg

    345

    Load Capacity in 20FT (units)

    24

    Load Capacity in 40HQ (units)

    83

    Noise level（7m）

    dB(A)

    72

    Structure type

    Super Silent

    Engine

    Engine Model

    KD2V80

    Engine Type

    V-twin, water-cooled, four-stroke, swirl type

    Cylinder NO.-bore×stroke

    mm

    2-80*79

    Displacement

    ml

    794

    Rated power

    KW

    12.5/3000

    14.5/3600

    Compression ratio

    23:1

    Rated rotation speed

    r/min

    3000

    3600

    Combustion system

    –

    Cooling system

    Water cooled

    Lubrication system

    Pressure splashed

    Starting system

    Electric starter

    Fuel type

    0＃(summer), -10＃(winter), -35＃(chillness) diesel

    Lube oil brand

    CD grade or SAE10W-30, 15W-40

    Capacity of cooling water

    L

    3.5

    Lube capacity

    L

    2.27

    Starting motor capacity

    V-kW

    12V  1.4kW

    Charging generator capacity

    V-A

    12V  20A

    Battery capacity

    V-Ah

    12V  36AH

    Fuel consumption

    g/kW.h

    ≤340

    Fuel tank capacity

    L

    26

    Continous running time

    h

    7
