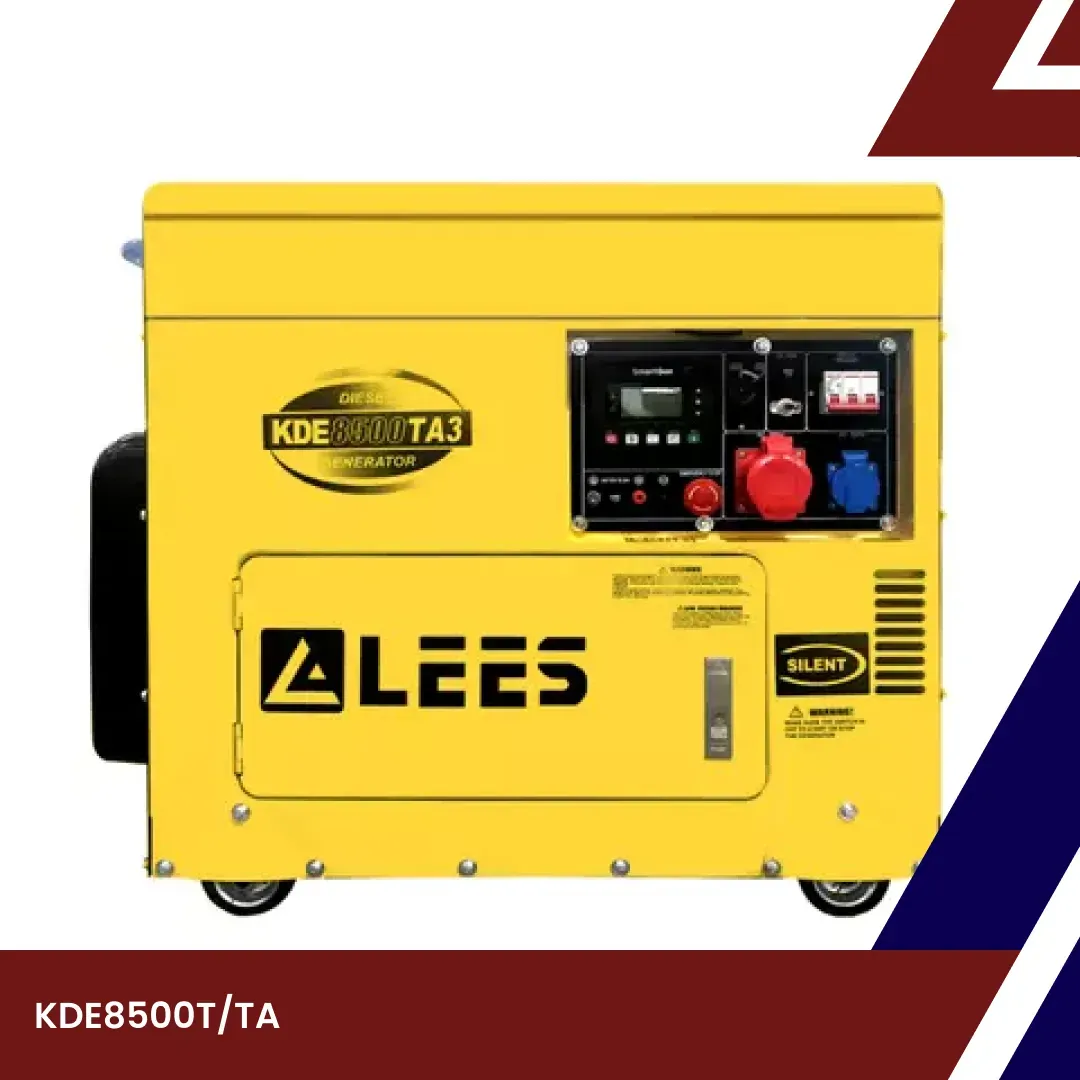

KDE8500T/TA

· Low running noise · Digital control panel · Advanced alternator winding · Low oil alarm system · Application of new AVR · Strong power

Add to wishlist
Share
Categories,

    Product Description





    Features



    Quieter and more powerful

    A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.Strong power with an easy start air cooled engine.



    Digital Control panel

    All operating functions of the generator sets are on the panel. A digital readout displays operating parameters in real time such as output voltage and amperage. Circuit breakers protect the generator from

    overloads.



    Running quickly

    A convenient electric starter gets the KDE series generators up and running quickly.



    Delivering the power you need

    Powerful, flexible, versatile, reliable, durable; LEES Generators have it covered on every level.



    Easily portable

    An open frame configuration means it’s easy to handle and store when not in use.



    Wide application

    Various models are available to meet all customer requirements.



    Parameter

    KDE8500T/TA

    Generator

    Rated frequency

    Hz

    50

    60

    Rated output

    kVA

    6

    6.5

    Max. output

    kVA

    6.5

    7

    Rated Voltage

    V

    115/230

    120/240

    Rated current

    A

    52.2/26.1

    54.2/27.1

    Rated rotation speed

    rpm

    3000

    3600

    Phase NO.

    Single phase, three loops

    Power factor

    1.0

    Insulation Grade

    B

    Pole number

    2

    Excitation mode

    Self-excitation and constant voltage(AVR）

    Panel Type

    T:General Panel       TA:Digital Panel

    Voltagge

    V

    230

    120/240

    Receptacle

    Two receptacles

    DC12V output

    DC receptacle output

    Overall dimension:     L×W×H

    mm

    910X530X840

    Dry weight

    Kg

    171

    Working assorting weight

    Kg

    196

    Load Capacity in 20FT (units)

    48

    Load Capacity in 40HQ (units)

    144

    Noise level（7m）

    dB(A)

    75

    Structure type

    Silent

    Engine

    Engine Model

    KD192FAE

    Engine Type

    vertical,  four-stroke, direct injection

    Cylinder NO.-bore×stroke

    mm

    1-92×75

    Displacement

    ml

    499

    Rated power

    KW

    7.6/3000

    8.6/3600

    Compression ratio

    19:1

    Rated rotation speed

    r/min

    3000

    3600

    Combustion system

    Direct injection

    Cooling system

    Air cooled

    Lubrication system

    pressure splashed

    Starting system

    Electric starter

    Fuel type

     0＃（summer）-10＃（winter）-35＃（chillness）diesel

    Lube oil brand

    SAE10W30（above CD grade）

    Capacity of cooling water

    L

    Without

    Lube capacity

    L

    1.65

    Starting motor capacity

    V-kW

    12V  0.8kW

    Charging generator capacity

    V-A

    12V  3A

    Battery capacity

    V-Ah

    12V  36AH

    Fuel consumption

    g/kW.h

    275.1

    281.5

    Fuel tank capacity

    L

    30

    Continous running time

    h

    9
