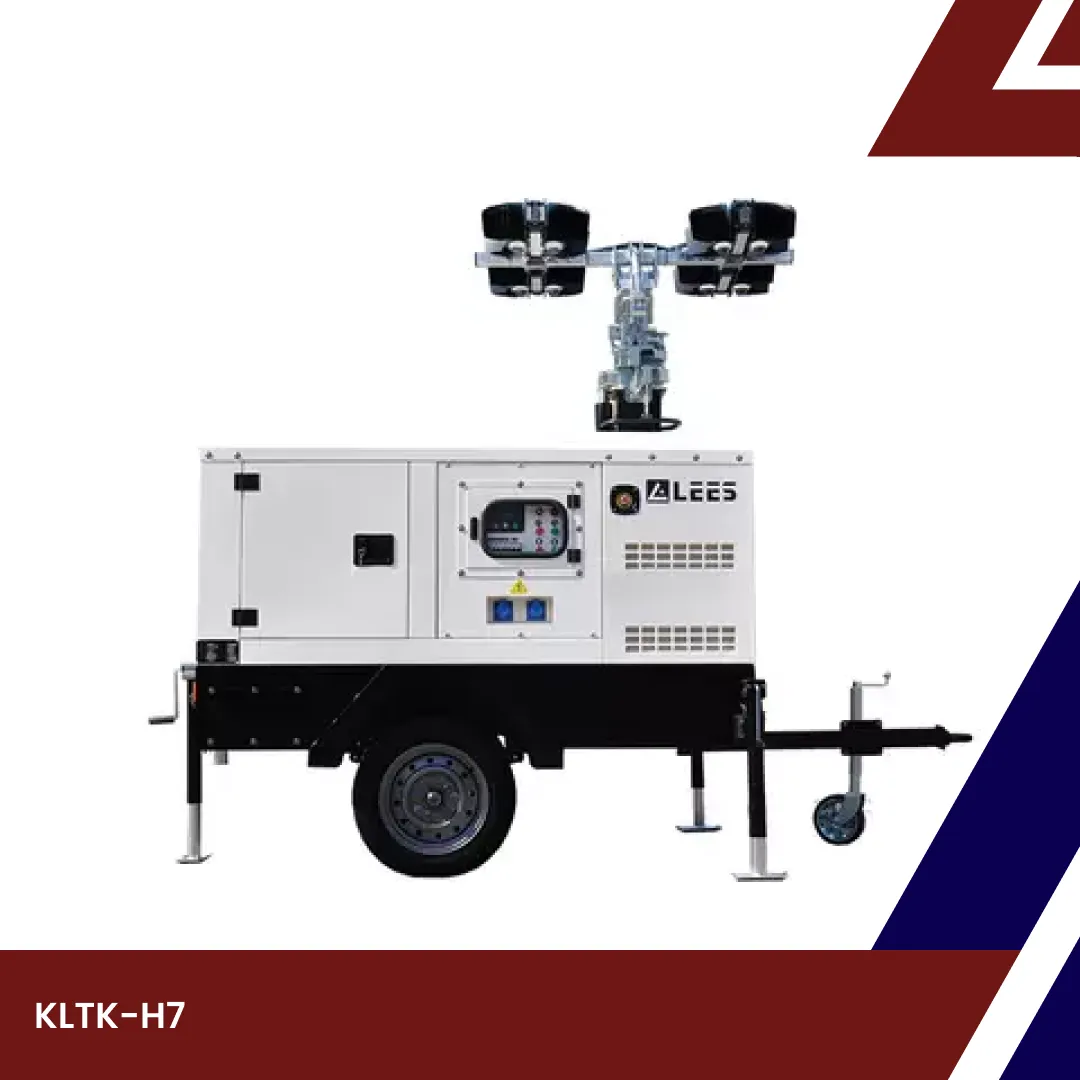

Light Tower

Mast Height

m

9

9

Frequency

Hz

50

60

Rated voltage

V

230

240/120

Rated power

kW

6

7

Max.Output

kW

7

8

Power Outlet Sockets

2*16A

2*16A

Fuel Consumption

L/H

1.7

1.7

Fuel Tank Capacity

L/H

40

40

Fuel Tank Hours

23

23

Noise Level

(7m)dB(A)

74

74

Weight

KGS

1630

1630

Dimension in Operation(L x W x H)

mm

2400x1800x9000

2400x1800x9000

Dimension in Transport (L x W x H) disassembly

mm

2400x1800x2540

2400x1800x2540

Load Capacity in 20FT (units) disassembly

/

/

Load Capacity in 40HQ (units) disassembly

4

4

Engine

Engine brand

Kubota

Kubota

Engine model

D1105-E2BG

D1105-E2BG

Speed

rpm

1500

1800

Prime Power

kw

8.4

10.1

Cooling System

Water-cooled

Water-cooled

Oil capacity

5.1

5.1

Alternator

Alternator Brand

Mecc alte

Mecc alte

Alternator Model

LT3N-130/4

LT3N-130/4

Continued Power

kVA

7

8

Excitation mode

Capacitor exciter

Alternator Insulation

H

H

Protection Grade

IP23

IP23

Mast

Mast type

Hydraulic

Hydraulic

Section No. (Extened)

8

8

Mast Rotation

359°

359°

Mast Extension Time

14 seconds

14 seconds

Mast Descend Time

10 seconds

10 seconds

Lighting

Type of lights

Metal halide lamp

Metal halide lamp

Number & Power of the lights

4*1000W

4*1000W

Mast Lighting & Extension

Hydraulic operation

Hydraulic operation

Mast Lighting & Extension

Hydraulic operation

Hydraulic operation

Light angle turning

Electric

Electric

Luminous flux

4*110000=440000

IIIum Area (5 Lux min) ㎡

3900

3900

Lamps Rotation

75° (Automatic)

75° (Automatic)

Protection Glass

IP33

IP33

Color Temperature

4200K

4200K

Trailer

Braking System

Parking braking

Parking braking

Hitch

 Ball type/O Ring option

Tire Rim Size

185/R14”

185/R14”

Speed

<80km/h

<80km/h
