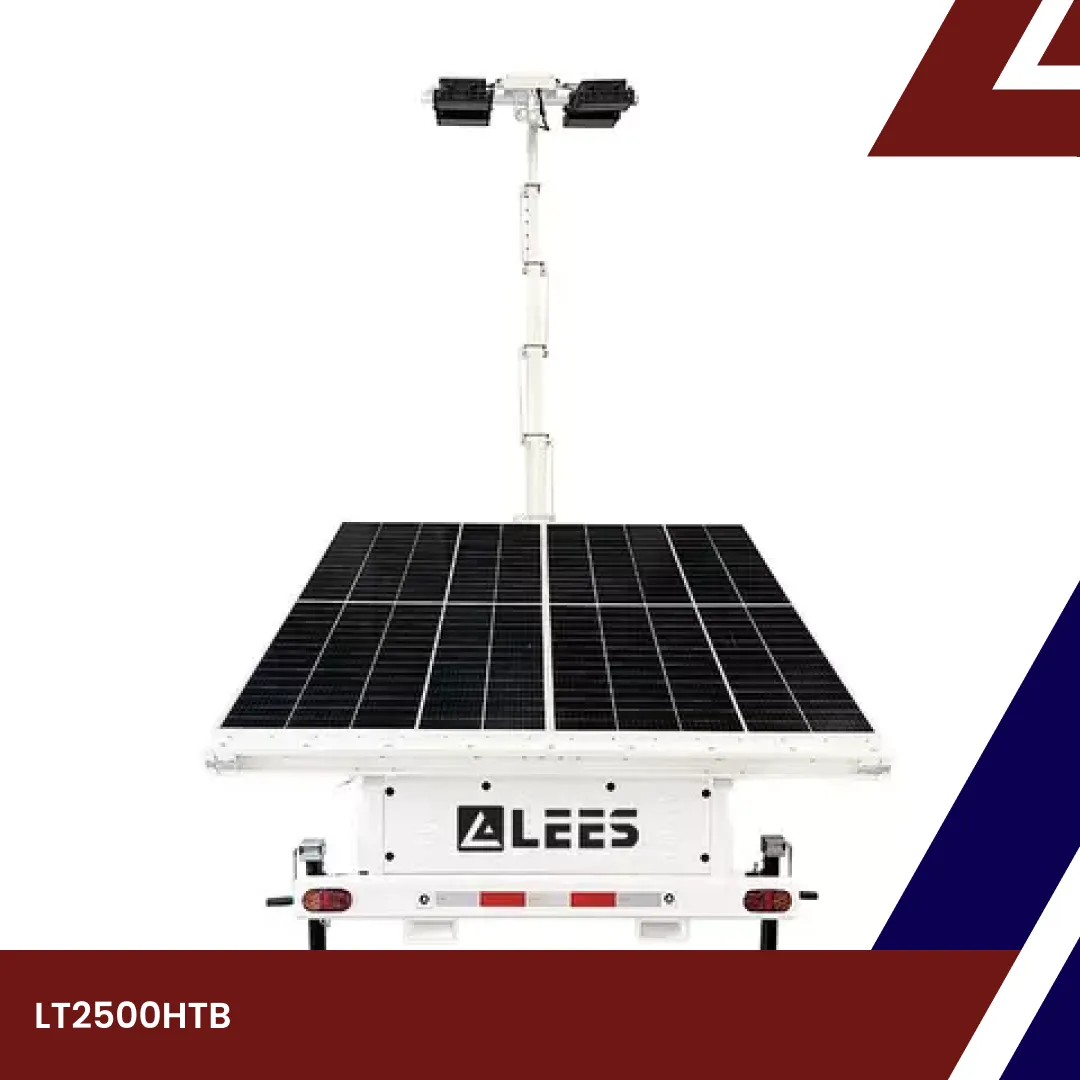

LT2500HTB

• LEES LT SeriesSolar Lighting Tower

Add to wishlist
Share
Category

    Features



    Features



    The solar photovoltaic mobile lighting tower applies renewable solar energy and LED lamps, which makes it brighter and more energy-saving than general ones. It excludes the inherent shortcomings of diesel lighting towers. Also, it features no operation cost, zero carbon emission, and doesn’t cause noise and pollution.



    The mast can be extended and folded electrically, reaching 8.3M in height.



    Trailer chassis can work at a speed of 80KM/H. Besides, the base has a forklift pocket to facilitate the movement under special circumstances.



    Each LED lamp is equipped with a separate circuit breaker.



    The high-performance energy storage lithium batteries group can work for 12.3 hours when fully charged.



    Parameter

    LT2500HTB

    Light Tower

    Model

    7.5

    Rated Power (LED Lamp)

    240W*4pcs

    System Voltage

    48VDC

    PV Panel

    505W*4pc

    Vertical Rotation Angle (PV Panel)

    Fixed 15-20°

    Battery Type

    Lithium Battery (with all-in-one inverter)

    Battery Capacity

    100AH

    Battery Quantity

    2pcs+1pcs

    Mast Driver

    Electric (optional: Hydraulic type)

    Mast Height

    8.3m

    Horizontal Rotation Angle

    0-355°

    Standby Generator (Option)

    /

    AC Output (Option)

    3KW

    Solar Charger

    48V50A

    AC Charger (Option)

    /

    Solar System Charge Time

    6-8H

    Standby Generator Charge Time

    /

    Lighting Discharge Time

    12.3H (full load)

    Trailer Speed

    ≤80Km/H

    Loading Dimensions(L*W*H)

    2860*1150*2458mm

    Expanding Dimensions(L*W*H)

    3750*5410*7500mm

    Net Weight

    1180kgs

    Loading Units of 40’HQ

    4pcs
