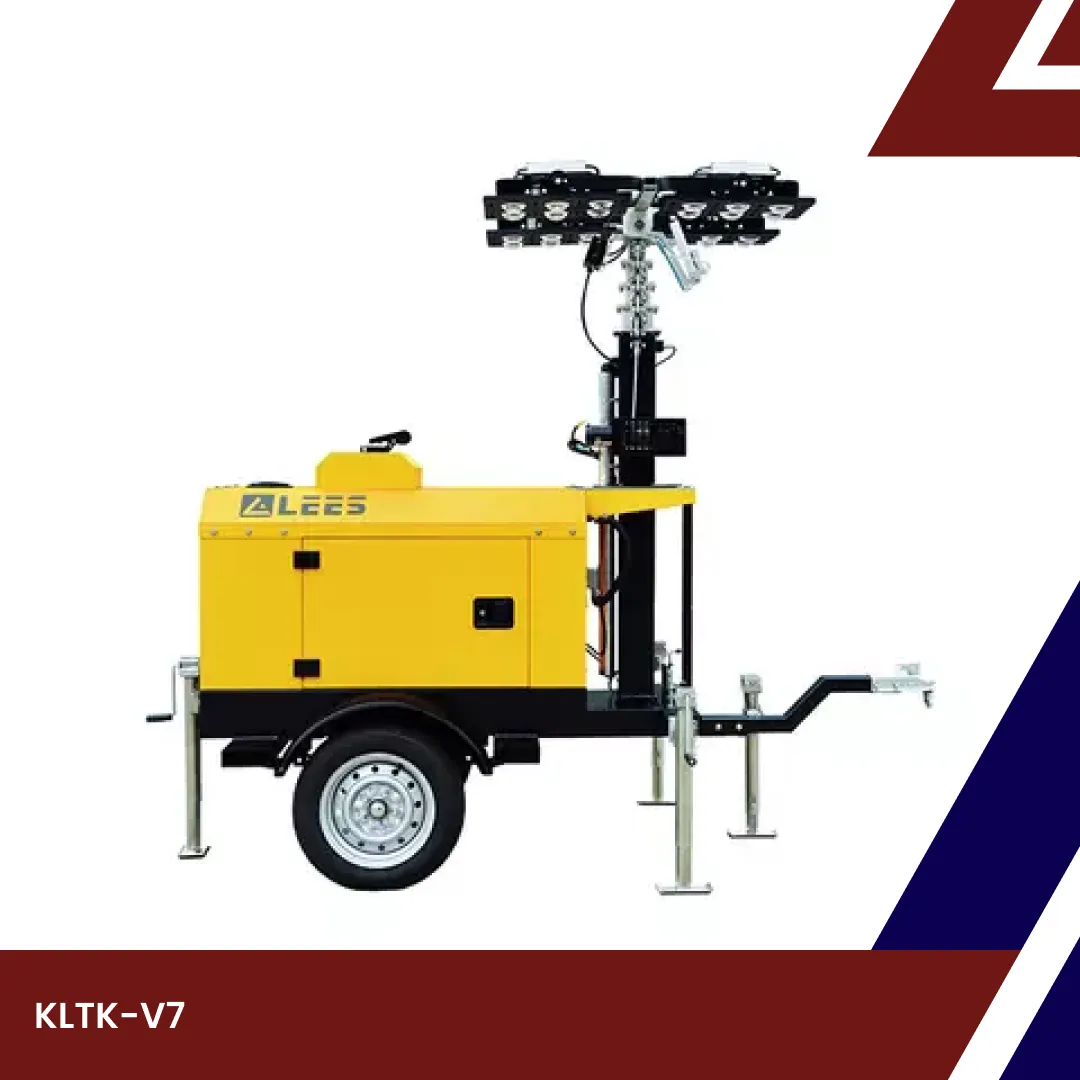

KLTK-V7

• Powered by Kubota • 4 stages mast up to 9 meters

Add to wishlist
Share
Category

    Features

    Features



    Wide Lighting Area

    LEES’s light tower parallel lamp structure is more efficient than competitive lighting systems and provides up to 50% more light output. The unique top structure of the lamp shade directs up to 10% of previously wasted upward light directly to the work site.



    Dual Application

    The generator powering the light tower can be used a backup power in emergency situations. There are two receptacles on the light tower mast. You can switch off the lights and then connect another electrical load to get a quality output from the generator.

    The receptacles can be configured to your voltage requirement of 120, 230, or 240V.



    Advantages of Halide Lamp

    The internal structure of the metal halide lamp is unique. The light is produced through the discharge of its internal gasses. There is no filament to break or deteriorate over time and no bulb to throw away.



    Safe operation

    The mast incorporates a safety feature by not permitting the mast to be raised unless the footbrake is on. If the footbrake is release, the mast will automatically lower to the travel position. The light tower trolley has stabilizers to keep the light tower steady on all surfaces.



    Parameter

    KLTK-V7

    Light Tower

    Mast Height

    m

    8

    8

    Frequency

    Hz

    50

    60

    Rated voltage

    V

    230

    240/120

    Rated power

    kW

    6

    7

    Max.Output

    kW

    7

    8

    Power Outlet Sockets

    1*16A

    1*16A

    Fuel Consumption

    L/H

    1.7

    1.7

    Fuel Tank Capacity

    L/H

    30

    30

    Fuel Tank Hours

    17

    17

    Noise Level

    (7m)dB(A)

    76

    76

    Weight

    KGS

    800

    800

    Dimension in Operation(L x W x H)

    mm

    2990x1300x8000

    2990x1300x8000

    Dimension in Transport (L x W x H) disassembly

    mm

    1950x1300x1010

    1950x1300x1010

    Load Capacity in 20FT (units) disassembly

    4

    4

    Load Capacity in 40HQ (units) disassembly

    9

    9

    Engine

    Engine brand

    Kubota

    Kubota

    Engine model

    D1105-E2BG

    D1105-E2BG

    Speed

    rpm

    1500

    1800

    Prime Power

    kw

    8.4

    10.1

    Cooling System

    Water-cooled

    Water-cooled

    Oil capacity

    5.1

    5.1

    Alternator

    Alternator Brand

    Mecc alte

    Mecc alte

    Alternator Model

    LT3N-130/4

    LT3N-130/4

    Continued Power

    kVA

    7

    8

    Excitation mode

    Capacitor exciter

    Alternator Insulation

    H

    H

    Protection Grade

    IP23

    IP23

    Mast

    Mast type

    Manual

    Manual

    Section No. (Extened)

    4

    4

    Mast Rotation

    359°

    359°

    Mast Extension Time

    45 seconds

    45 seconds

    Mast Descend Time

    30 seconds

    30 seconds

    Lighting

    Type of lights

    Metal halide lamp

    Metal halide lamp

    Number & Power of the lights

    4*1000W

    4*1000W

    Mast Lighting & Extension

    Manual

    Manual

    Mast Lighting & Extension

    Electric (Option)

    Electric (Option)

    Light angle turning

    Manual

    Manual

    Luminous flux

    4*110000=440000

    IIIum Area (5 Lux min) ㎡

    3900

    3900

    Lamps Rotation

    75° (Manual)

    75° (Manual)

    Protection Glass

    IP33

    IP33

    Color Temperature

    4200K

    4200K

    Trailer

    Braking System

    /

    /

    Hitch

     Ball type/O Ring option

    Tire Rim Size

    165/R14″

    165/R14″

    Speed

    <80km/h

    <80km/h
